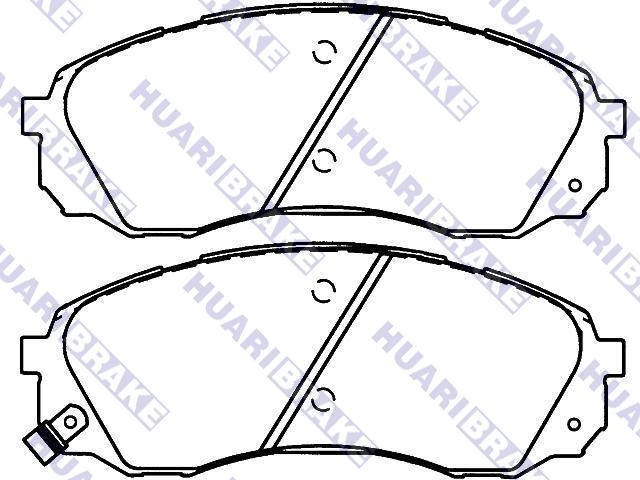

Description 58101-4DE00 HR1116 Brake Pad Set SET Front Axle
Brake System : SUM
Width : 164.5 mm
Height : 63.4 mm
Thickness : 17.6 mm
| Model | Engine | Chassis | Type | CYL | year | ||
|---|---|---|---|---|---|---|---|
| HYUNDAI H-1 Box (A1) | 7/01 - 4/04 | ||||||
| HYUNDAI H-1 Bus (KMF) | 2/02 - / | ||||||
| HYUNDAI H-1 Cargo (TQ) | 2/08 - / | ||||||
| HYUNDAI H-1 Travel (TQ) | 5/08 - / | ||||||
| HYUNDAI STAREX (H1) | 6/06 - 2/07 | ||||||
| KIA CARNIVAL III (UVP_) | 9/06 - / | ||||||
Application
HYUNDAI H-1 (Latin America) 2006-2010
KIA Carnival (Latin America) 2006-2010
KIA Carnival (Latin America) 2006-2010
- Recommends every 5,000 km check Brake System
ensure the normal operation of the braking system - Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
- Rear brakes is recommended to replace within 5-7 km
- Replace the Disc brake when follow situation happen:
- 1.Sensor alarm;
- 2.Friction materials thickness less than 3mm;
- 3.Friction materials becomes contaminated with brake fluid;
- 4.Uneven wear within a set;
- Replace the brake rote when follow situation happen:
- 1.Vibrate when braking;
- 2.Car vehicle performance more than 60000Km and braking unstable;
- 3.Disc brake thickness wear more than 2mm;
